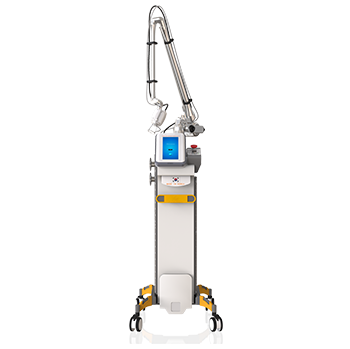

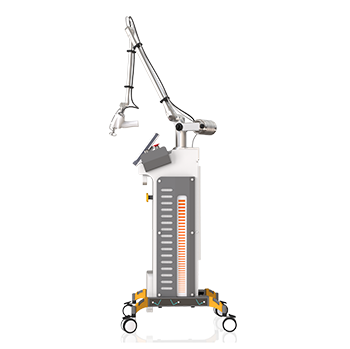

CO2 Fractional laser Scar removal skin rejuvenation machine

Introduction

Fractional CO2 laser therapy works mainly on the principle of fractional heat damage. The fractional CO2 laser creates microscopic holes in the upper layer of skin and leaves the deeper part of the skin intact.  The purpose of the treatment is to create controlled heat damage at the basal layer of skin leading to the reduction of wrinkles, pigmentation and acne scarring. The fractional CO2 laser also tightens and refines the skin as well as improving the long term collagen and elastin reproduction.

Product Details



What is CO2 Fractional laser?



CO2 Fractional laser machine is the most advanced conceptual fractional CO2 skin peeling laser system, which is a simple,fast,efficient and comfortable device in wrinkle removal, smooth scars, skin rejuvenation and resurfacing, vaginal tightening. It has three modes: Continuous&Fractional&Vaginal.



Principle of lattice laser



Fractional CO2 laser therapy works mainly on the principle of fractional heat damage. The fractional CO2 laser creates microscopic holes in the upper layer of skin and leaves the deeper part of the skin intact.  The purpose of the treatment is to create controlled heat damage at the basal layer of skin leading to the reduction of wrinkles, pigmentation and acne scarring. The fractional CO2 laser also tightens and refines the skin as well as improving the long term collagen and elastin reproduction.

The lattice mode,acting on the dermis,can accelerate skin repair,accumulate heat in the dermis,make skin collagen produce immediate contraction,and stimulate collagen hyperplasia for a long time,so as to remove wrinkles,remove scars,tender skin and solve skin problems such as abnormal pigmentation.



Indication

                                         Alleviate stretch marks                                                           Anti-aging, remove wrinkles, increase firmness



                                               Various scars                                                                   Vaginal treatment:contracting the vaginal、labium

                                   (burns, surgical remnants, trauma, etc.)                              whitening、solve the problem of dyspareunia and colpoxerosis



Advantage

1.Laser device imported from US,provide steady laser power.



2.7 articular optimal-arm from Korea,easily operated and greatly reduces the energy loss.



3.Continuous,fractional,feminine mode combined together.Professional 45°and 360°vagina tightening treatment head.

4.The auxiliary weight of the laser guide arm designed in Korea makes it easier for doctors to use.After loosening the laser guide arm,the laser guide arm will automatically return to the original position.



5.Different scan shapes:triangle,square,rectangle,diamond,round,oval and upgrade to DIY.



6.Spot size diameter(in microscope)<70um,penetrate depth 2mm.



Handpiece

    Ultrapluse treatment head                                       Fracional treatment head                                       Vaginal treatment head

           continuous treatment head



Detail



Parameter

                                                              Mode                                                               FG40
                                                 Light guiding system                                            Korea imported 7 joints arm
                                                      Cooling system                                                           Air cooling
                                                         Wavelength                                                            10600nm
                                                       Output power                                                              3000W
                                                             Power                                                      30W  40W  75W
                                                  Focal spot diameter                                                      50um~2000um
                                                        Dot distance                                                0.1~2.6mm(adjustable)
                                                        Pulse energy                                                   10~200mj,2mj step
                                                         Pluse width                                                             1~100ms
                                                          Scan area                                                        Max 25*25mm
                                                  Focal spot quantity                                    1(1*1)~40000(200*200)(adjustable)
                                                       Figure square                                0.1mm*0.1mm~25mm*25mm(adjustable)
                                                     Scanning mode                                              in order,disorder,mid split
                                                         Laser Type                                            USA Coherent laser(RF Tube)
                                                     System&Probes                                                       3 system,5 probes
                                                      CPG Scanning                                                                     Yes
                                                     Working voltage                                      AC:220V+10%,50Hz;110V+10%,60Hz
                                                       Pulse interval                                                       1~100ms;1ms step

interface

FAQ


1. What is the Payment Terms?

Re: T/T, Western Union, Ali Pay, etc.



2. How do you delivery the machine?

Re: Door to door service, DHL, TNT, UPS, FEDEX, air cargo, etc.



3. What about the delivery?

Re: 5-15 working days after payment.



4. What’s your warranty?

Re: 12 months warranty for host machine and whole life maintenance.



5. Do you offer clinical training?

Re: Yes. Welcome to our company for free and professional training.



6. Once the machine have any malfunction during the operation, how to deal with?

Re: Please contact us and our after-sale service team will support you immediately and solve the machine’s problem within 1-3
days.



7. Do you offer OEM/ODM service?

Re: Yes. Welcome to contact us for more details.
